Hub Motor Interface

CAN Bus Communication

CAN communication is the method of communication where devices act as nodes compose of Host, CAN Controller and CAN Transceiver. ZLAC706-CAN act as 1 node but STM32H745ZI only act as Host and CAN Controller. So we need additional transceiver connect at the output of fdcan port to perform 1 node. The baudrate of CAN is also ranged from 500 kHz to 1 MHz

Hub Motor Driver Connection

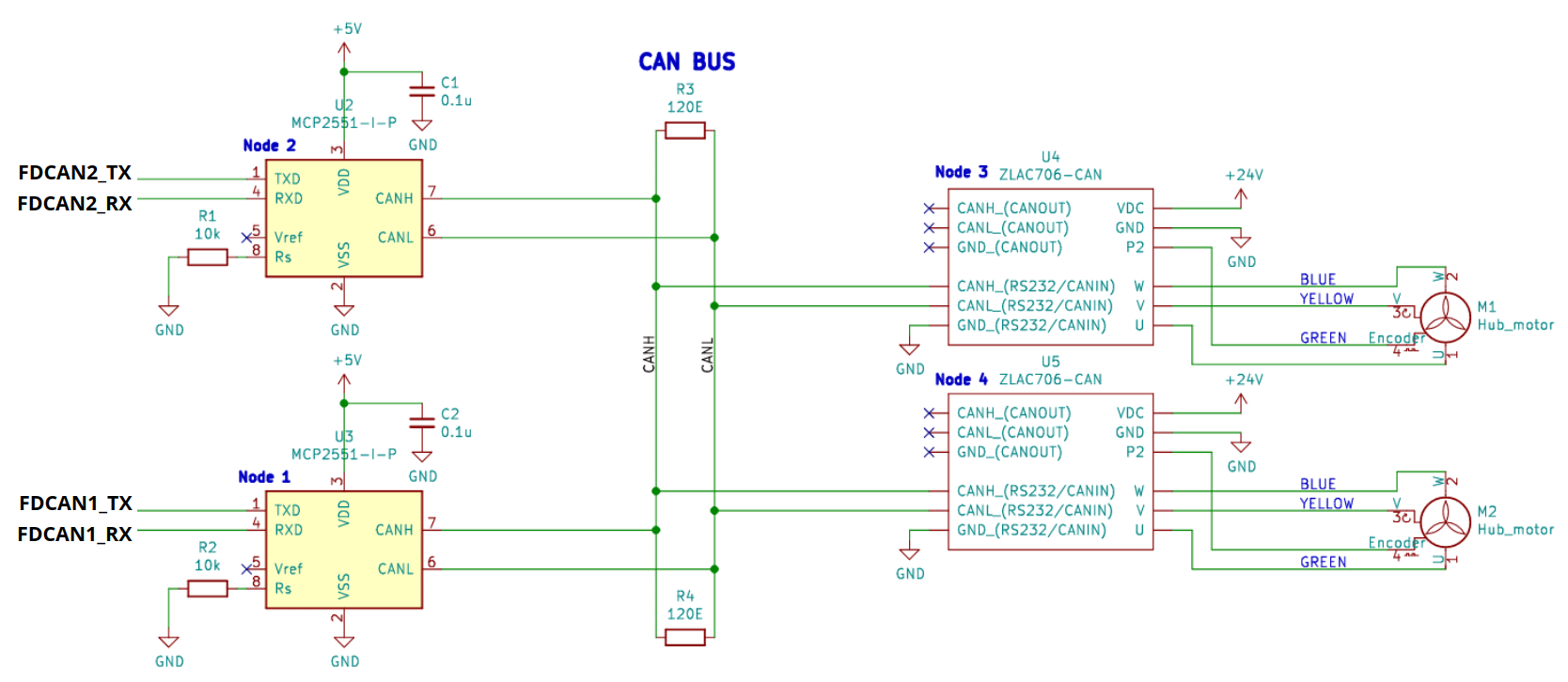

Here’s the KiCad schematic of hub motor driver including STM32H745ZI fdcan port, can transceiver, can bus and hub motor.

STM32 FDCAN Specification

Frame format: Classic CAN
Baudrate: 500 kHz
Auto retransmission: Enable
Data length: 8 bytes
Left motor CAN ID: 0x11
Right motor CAN ID: 0x22

CAN Mask Filter (For detect specific ID)

Filter for detect 0x11 (Left motor)

FDCAN_FilterTypeDef sFilterConfig;

sFilterConfig.IdType = FDCAN_STANDARD_ID;
sFilterConfig.FilterIndex = 0;
sFilterConfig.FilterType = FDCAN_FILTER_MASK;
sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO0;
sFilterConfig.FilterID1 = 0x11;
sFilterConfig.FilterID2 = 0x7FF;        /* For acceptance, MessageID and FilterID1 must match exactly 0x7FF*/
sFilterConfig.RxBufferIndex = 0;

Filter for detect 0x22 (Right motor)

FDCAN_FilterTypeDef sFilterConfig;

sFilterConfig.IdType = FDCAN_STANDARD_ID;
sFilterConfig.FilterIndex = 0;
sFilterConfig.FilterType = FDCAN_FILTER_MASK;
sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO1;
sFilterConfig.FilterID1 = 0x22;
sFilterConfig.FilterID2 = 0x7FF;        /* For acceptance, MessageID and FilterID1 must match exactly */
sFilterConfig.RxBufferIndex = 0;

Hub Motor Function

These function are implemented base on ZLAC706-CAN speed mode in datasheet.

CAN communication test command: RightMotor_TestCommand()

void RightMotor_TestCommand()
{
    // Clear Tx data
    TxData_Clear(TxData1);

    // Set Working mode to Position mode (used as Test command)
    TxData1[3] = 0x19;      // internal address
    TxData1[7] = 0x3F;      // set position mode value
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    // Wait until tx message is received at the rx
    TxWriteMsg1_isReturn = 0;
    while (!TxWriteMsg1_isReturn);
}

Hub motor set speed mode: BothMotor_Set_SpeedMode(float initial_right_speed_rpm, float initial_left_speed_rpm, uint8_t acc_time, uint8_t dec_time)

void BothMotor_Set_SpeedMode(float initial_right_speed_rpm, float initial_left_speed_rpm, uint8_t acc_time, uint8_t dec_time)
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Set Working mode to Speed mode for right motor
    TxData1[3] = 0x19;              // internal address
    TxData1[7] = 0x2F;              // set speed mode value
    // Set Working mode to Speed mode for left motor
    TxData2[3] = 0x19;              // internal address
    TxData2[7] = 0x2F;              // set speed mode value
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}      // declare more than 1
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}

    // Set Acceleration and Deceleration for right motor
    TxData1[3] = 0x13;              // internal address
    TxData1[6] = acc_time;  // set acceleration = acc_time x 100ms
    TxData1[7] = dec_time;  // set deceleration = dec_time x 100ms
    // Set Acceleration and Deceleration for left motor
    TxData2[3] = 0x13;              // internal address
    TxData2[6] = acc_time;  // set acceleration = acc_time x 100ms
    TxData2[7] = dec_time;  // set deceleration = dec_time x 100ms
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}

    Motor_Set_TargetSpeed(initial_right_speed_rpm, initial_left_speed_rpm);
    BothMotor_Enable();
    BothMotor_EmergencyBrake();
}

Hub motor set target speed: Motor_Set_TargetSpeed(float right_speed_rpm, float left_speed_rpm)

void Motor_Set_TargetSpeed(float right_speed_rpm, float left_speed_rpm)
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Set Right motor target speed
    TxData1[3] = 0x11;              // internal address
    uint32_t set_value = (fabs(right_speed_rpm) * 8192.0) / 3000;   // calculate 32 bit set value from actual speed
    if (right_speed_rpm >= 0){
        set_value = ~set_value + 1; // reverse (two complement)
    } else {
        set_value = set_value;      // forward
    }
    TxData1[4] = (set_value >> 24) & 0xFF;  // set Byte4
    TxData1[5] = (set_value >> 16) & 0xFF;  // set Byte5
    TxData1[6] = (set_value >> 8) & 0xFF;   // set Byte6
    TxData1[7] = set_value & 0xFF;                  // set Byte7

    // Set Left motor target speed
    TxData2[3] = 0x11;              // internal address
    set_value = (fabs(left_speed_rpm) * 8192.0) / 3000;     // calculate 32 bit set value from actual speed
    if (left_speed_rpm >= 0){
        set_value = set_value;      // forward
    } else {
        set_value = ~set_value + 1; // reverse (two complement)
    }
    TxData2[4] = (set_value >> 24) & 0xFF;  // set Byte4
    TxData2[5] = (set_value >> 16) & 0xFF;  // set Byte5
    TxData2[6] = (set_value >> 8) & 0xFF;   // set Byte6
    TxData2[7] = set_value & 0xFF;                  // set Byte7

    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {error = 2; Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {error = 3; Error_Handler();}
}

Hub motor enable: BothMotor_Enable()

void BothMotor_Enable()
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Enable the right motor
    TxData1[3] = 0x10;      // internal address
    TxData1[7] = 0x1F;      // set enable motor value
    // Enable the left motor
    TxData2[3] = 0x10;      // internal address
    TxData2[7] = 0x1F;      // set enable motor value
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}
}

Hub motor release brake: BothMotor_Release()

void BothMotor_Release()
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Release the right motor with down time
    TxData1[3] = 0x10;      // internal address
    TxData1[7] = 0x0F;      // set release motor value
    // Release the left motor with down time
    TxData2[3] = 0x10;      // internal address
    TxData2[7] = 0x0F;      // set release motor value
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}
}

Hub motor emergency brake: BothMotor_EmergencyBrake()

void BothMotor_EmergencyBrake()
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Emergency stop the right motor
    TxData1[3] = 0x30;      // internal address
    TxData1[7] = 0x1F;      // set emergency stop value
    // Emergency stop the left motor
    TxData2[3] = 0x30;      // internal address
    TxData2[7] = 0x1F;      // set emergency stop value
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}
}

Hub motor read current: BothMotor_Get_Current()

void BothMotor_Get_Current()
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Get right motor current
    TxData1[1] = 0xDC;      // set tx read command
    TxData1[3] = 0xE2;      // internal address
    // Get left motor current
    TxData2[1] = 0xDC;      // set tx read command
    TxData2[3] = 0xE2;      // internal address
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}
    // Wait until tx message is received at the rx
    TxWriteMsg1_isReturn = 0;
    TxWriteMsg2_isReturn = 0;
    uint64_t timeout = micros();
    while (!(TxWriteMsg1_isReturn && TxWriteMsg2_isReturn)){
        // 1 ms request timeout
        if (micros() - timeout > 1000){
            break;
        }
    }
}

Hub motor read speed: BothMotor_Get_Speed()

void BothMotor_Get_Speed()
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Get right motor speed
    TxData1[1] = 0xDC;      // set tx read command
    TxData1[3] = 0xE4;      // internal address
    // Get left motor speed
    TxData2[1] = 0xDC;      // set tx read command
    TxData2[3] = 0xE4;      // internal address
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}
    // Wait until tx message is received at the rx
    TxWriteMsg1_isReturn = 0;
    TxWriteMsg2_isReturn = 0;
    uint64_t timeout = micros();
    while (!(TxWriteMsg1_isReturn && TxWriteMsg2_isReturn)){
        // 1 ms request timeout
        if (micros() - timeout > 1000){
            break;
        }
    }
}

Hub motor read position: BothMotor_Get_Position()

void BothMotor_Get_Position()
{
    // Clear Tx data
    TxData_Clear(TxData1);
    TxData_Clear(TxData2);

    // Get right motor pulse
    TxData1[1] = 0xDC;      // set tx read command
    TxData1[3] = 0xE8;      // internal address
    // Get left motor pulse
    TxData2[1] = 0xDC;      // set tx read command
    TxData2[3] = 0xE8;      // internal address
    // Sent command to ZLAC706-CAN motor driver
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &TxHeader1, TxData1) != HAL_OK)     {Error_Handler();}
    if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan2, &TxHeader2, TxData2) != HAL_OK)     {Error_Handler();}
    // Wait until tx message is received at the rx
    TxWriteMsg1_isReturn = 0;
    TxWriteMsg2_isReturn = 0;
    uint64_t timeout = micros();
    while (!(TxWriteMsg1_isReturn && TxWriteMsg2_isReturn)){
        // 1 ms request timeout
        if (micros() - timeout > 1000){
            break;
        }
    }
}

Runtime Test

Motor Set Speed Mode

runstarttime = micros();
//************************************
BothMotor_Set_SpeedMode(10, 10, 1, 1);
//************************************
runtime = micros() - runstarttime;

Runtime: 0.092 ms

Motor Read Position & Speed

runstarttime = micros();
//***********************************************
BothMotor_Get_Position();
BothMotor_Get_Speed();
//***********************************************
runtime = micros() - runstarttime;

Runtime: 1.135 - 1.226 ms

Motor Set Target Speed

runstarttime = micros();
//*********************************************************
Motor_Set_TargetSpeed(RightMotor_CmdVel, LeftMotor_CmdVel);
//*********************************************************
runtime = micros() - runstarttime;

Runtime: 0.022 ms
